- Size: 59*64*156
- Place of Origin: jintan
- Brand Name: MEIXIANG
- Model Number: CL-20C
- Weight: 5.000 kg

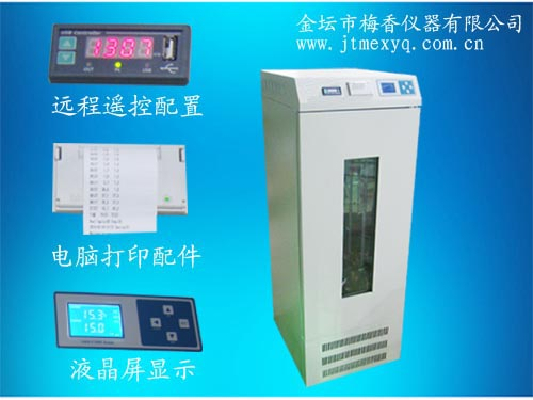

Incubator incubator is mildew and mold, microbial culture and special temperature test breeding culture apparatus, especially useful in biological engineering, medical research, agriculture, forestry science, fisheries, animal husbandry and other areas in the ideal equipment research and production use.
First, the function
1, with microprocessor control, with monitoring, temperature control and protection functions. Inside lights can be observed inside the culture. Stainless steel, never corrosion.
Second, the main technical parameters
Volume of (L): 200L
Temperature range: 0-50 ℃
Resolution: 0.1 ℃
Temperature fluctuation: Digital type ≤ ± 1.5 ℃
Smart (W type) ≤ ± 0.5 ℃
Temperature uniformity: ± 1 ℃
Power supply: 220V ± 10% 50HZ
Power: Heater: 300W
Compressor: 180W
Working Size (cm): 45 * 45 * 100
Dimensions (cm): 59 * 64 * 156
Third, the structural characteristics of
1, the device outside the box is a cold-rolled steel sheet, the surface electrostatic spray process, stainless steel liner, the insulation layer is made of polyurethane foam, translucent windows with double glass box to ensure insulation performance (low culture boxes and other requirements opaque BOD incubator without windows), cold inside the box, so that the hot air duct inside the gas circulation flow, the temperature more uniform.
2, the temperature control system equipment, intelligent application of advanced electronic circuits, analog control. Using a self-tuning PID system, heating system, the implementation of a "zero-crossing" non-contact switch circuit technology, thus achieving a pulse width modulated manner heated to a temperature control range of fluctuation is less than 0.5 ℃.
The use of methods
1 Conditions:
A, ambient temperature: 10-30 ℃;
B, no strong light, no strong corrosive gases, ventilation, relative humidity below 85%;
C, Power supply: 220V ± 10%, 50HZ. Capacity of not less than 1KW, with grounded electrical outlet;
2 How to use:
A, power: the three-pin plug into a power outlet, the power switch on the panel is set to "on" position, then the emergence of digital instrument display, showing the device into operation.
Set temperature: Press the SET button to set or check the temperature set point. Press the SET button digital control character starts flashing, that instrument into setting mode, press the △ button to increase the set value, press ▽ key to reduce the set value, press △ key or ▽ key data is rapidly changing, press again sET key instrument to return to normal working condition temperature setting is completed. (If the temperature controller is smart, the temperature specification attached). Automatic temperature control device enters the working state. Heating, cooling, protection device is located three indicators suggests alternate working condition.
B, smart and special requirements extra instruction manual.
V. Notes
a) After the fall of the equipment, such as uneven ground should be leveled.
Move b) equipment to be moved in parallel to any inclination angle less than 45 degrees.
c) The equipment during normal operation, was placed inside the carrier should not affect air circulation to ensure temperature uniformity inside.
d) the box and the interior wall surface of the device to regular cleaning to keep clean.
e) equipment unused for long periods, you should disconnect the power cord to prevent the device charged wounding. And should be regularly (generally one quarter) run 2-3 days according to the conditions of use in order to get rid of moisture electrical components to avoid damage on the device.
f) The failure of such equipment should be professionals or manufacturers service Solution.
No. Name No. Name Quantity specification Quantity
A whole table 4 1 Packing List 1
2 Manual 1 Warranty card 5 1
3 Certificate 1 6 10A fuse 2
- Size: 59*64*156
- Place of Origin: jintan
- Brand Name: MEIXIANG
- Model Number: CL-20C
- Weight: 5.000 kg
Volume of (L) | 200L |
Temperature range | 0-50 ℃ |
Resolution | 0.1 ℃ |
Temperature fluctuation | Digital type ≤ ± 1.5 ℃ |
Smart (W type) | ≤ ± 0.5 ℃ |
Temperature uniformity | ± 1 ℃ |
Power supply | 220V ± 10% 50HZ |
Power Heater | 300W |
Compressor | 180W |
Working Size (cm) | 45 * 45 * 100 |
Dimensions (cm) | 59 * 64 * 156 |
