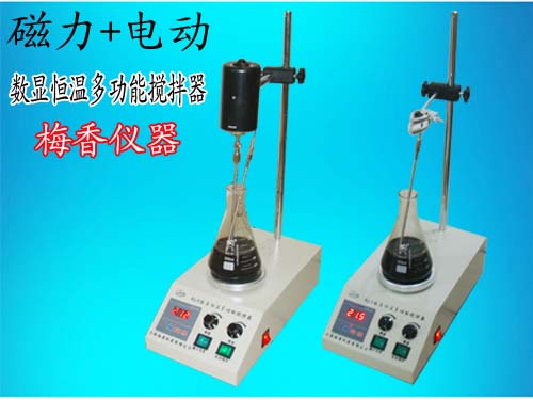

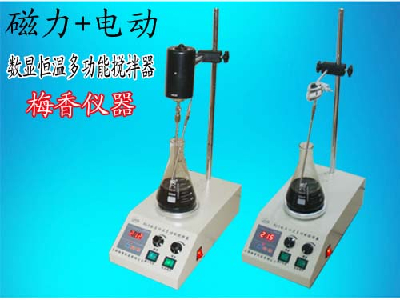

Digital display constant temperature and multi function mixer factory professional manufacturer production design

Product introduction

Multifunctional stirrer set the multiple functions of the enterprise in the production of magnetic heating stirrer, thermostat magnetic stirrer, electric mixer as a whole, magnetic heating (or constant temperature magnetic heating stirring, electric stirring machine, can be in a wide speed range of liquid solution were stable and precise stirring, simple operation, smooth running, stepless speed regulation, accurate temperature control, especially suitable for different viscosity small volume solution with testing machine mixing operation, petroleum, chemical, metallurgy, textile, food, medicine and health, environmental protection, biochemical laboratory, analysis room, education and scientific research necessary tools.

Two, technical parameters

Working power supply: 50HZ 220V

Power of the whole machine: 500W

Temperature control range: room temperature ~100 degrees C 1 degrees C

Speed range: magnetic: starting ~2400r/min;

Electric: starting r/min ~3000

Three, the use of methods

1, turn on the external power supply, combined with the total power switch, will be equipped with a solution and mixing of the test bottle (or other containers) on the working panel, open magnetic stirring switch, adjust the "magnetic" speed control knob, rose to the required speed. Can be used as the magnetic stirring, if the need for electric stirring check to make sure that try to install bottle (or other vessels) of clamping position, adjustment and calibration of motor and fixture in the column on the position and height, open the electric stirring switch and regulation "electric" speed control knob, rose to the desired speed can be an electric mixer, for constant temperature mixing, temperature setting, press the set button can be set or check the temperature set point. According to a set key digital tube character start flashing, said instrument set to enter the state, according to] key set value increase, press the button to set value decreases, long press] key or button data will quickly change, again press set key the instrument back to normal working temperature after setup.

2, after work, in the minimum speed control knob; temperature control knob is arranged on the non working state, closed stirring switch and a power supply switch, cut off the power. Wipe clean the column, a working surface, fixture, sensor, the does not allow water residue and dirt.

Blender after-sales service: three packs a year, life-long maintenance!

The enterprise has passed ISO9001-2008 quality system certification
