Detailed product introduction

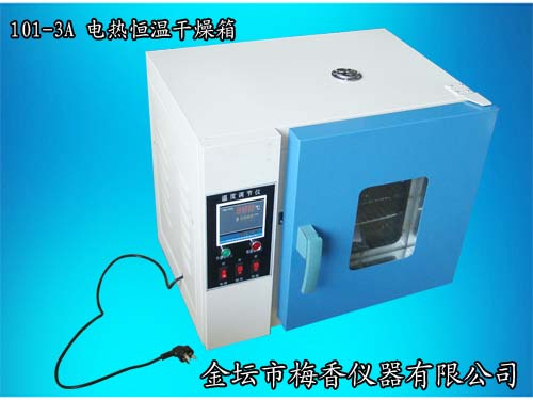

Digital display electrothermal constant temperature drying box professional manufacturer

A simple introduction to the electric heating constant temperature drying box:

202, 101 type electric heating drying box maximum operating temperature is 330. It is suitable for baking, drying box, heat treatment or other heating. Is a regular instrument in laboratories. The working temperature of the drying box can be up to the maximum temperature from room temperature up to 30 degrees Celsius. In this range, the working temperature can be arbitrarily selected. After the selection, the automatic control system can be made to make the temperature constant. The proportion of hot and cold air in the chamber of the 202 type electric heating drying box is facilitated by convection, so that the indoor temperature is uniform. The 101 type air blast drying box is provided with an electric blower, which urges the indoor hot air mechanical convection to make the indoor temperature more uniform. The drying structure is precise, sensitive and accurate, and the operation is simple and convenient, and can be used in industrial and mining and scientific research units of tertiary institutions.

Two, electrothermal constant temperature drying box technical parameters:

1, temperature range: room temperature 10 degrees to 300

2, volatility is not more than 1 DEG C

3, uniformity: less than 1.5 DEG C

4, work size: 500*600*750

5 digital display temperature control, temperature control

6, over temperature alarm protection device

Three, electric heating constant temperature drying box structure:

The drying box is composed of a thin steel plate, and a glass fiber is used as a heat insulating layer between the working chamber and the box shell. There is a glass door between the doors for the observation of the studio.

Open exhaust valve at the top of cabinet can make atelier lukewarm hot and cold air to be convection exchange, temperature control with indication of thermal expansion controller or digital is instrument with automatic temperature adjustment. All electric control equipment is installed in the box side control layer. The control layer has a side door can be removed for inspection or repair line with.

Incubator after sales service: three bags a year, life-long maintenance!

The enterprise has passed ISO9001-2008 quality system certification
