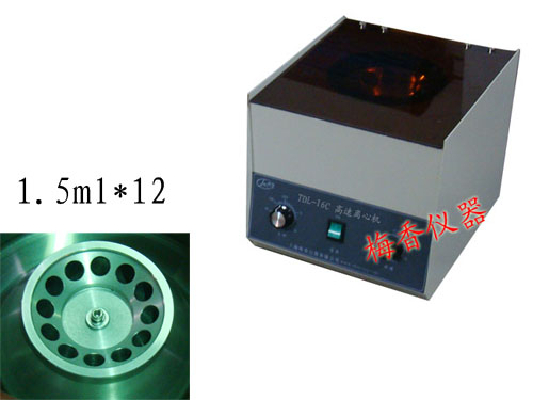

Technical parameters of high speed electric centrifuge:

Power supply: 50HZ 220V maximum centrifugal acceleration: 7000g

Power: 80W capacity: 1.5*12ml

Maximum speed: 8000 rpm noise: less than 70dB

Speed control accuracy: 200 rpm / min: 0-60 10%

The simple introduction of high speed electric centrifuge:

The series electric table centrifuge has the advantages of beautiful appearance, large content, small size, light weight, low noise, small vibration, time control and so on. Centrifugal precipitation separation with blood feeding, serum, urea and vaccine manufacturing.

Description of the use of high speed electric centrifuge:

1, the machine with three eye safety socket, before use should be properly ground, work, should be the machine is placed on the smooth and solid surface.

2, first check the timer knob, should be in the "0" position, and then turn on the power supply, open the power switch, indicator light.

3, the specific operation must be according to the following steps:

A, open the cover plate, carefully placed in the centrifuge tube. Note: the same weight must be placed in a symmetrical centrifuge tube, and its weight deviation is not more than 1 grams.

B close the cover plate, adjust the speed to the desired value.

C will be turned to the time required for the timer value ("ON" for the normally closed position), the timer from the "0" position, the rotary table that begins to rotate, centrifuge work.

D after a certain period of time, the timer back to the "0" position, the turntable stops rotating, the centrifuge stops working. When the machine is used, turn off the switch, put the machine in a dry, ventilated and cool place, and keep it clean.

Note of table type high speed electric centrifuge:

1, the machine use series excitation type motor, the brush generally in about 500 hours should be promptly replaced, in order to avoid carbon brush polished, commutator wear.

2, the machine noise standard is less than 70 dB (with the centrifuge 1 meters).

3, each plastic protective tube weight deviation should be less than 0.2 g, general after protecting tube damage should be promptly replaced, a group at the same time exchange or symmetric second root together exchange method can be used to minimize the deviation phenomenon.

4, in operation, the symmetry of the two glass test tubes (including test content) should be equal to the weight and length, such as large deviation will produce shaking.

5, the rotary disk should avoid encountered acid and alkali and corrosion.

6, as the whole product, should always pay attention to maintenance.

Centrifuge after-sales service: three packs a year, life-long maintenance!

The enterprise has passed ISO9001-2008 quality system certification
