- Size: 400*600*170
- Place of Origin: jintan
- Brand Name: MEIXIANG
- Model Number: CL-20C
- Weight: 5.000 kg

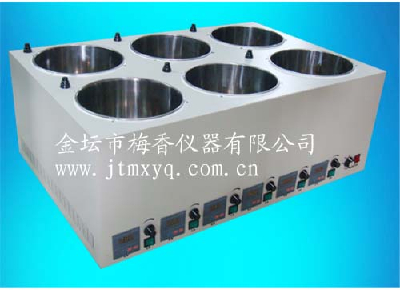

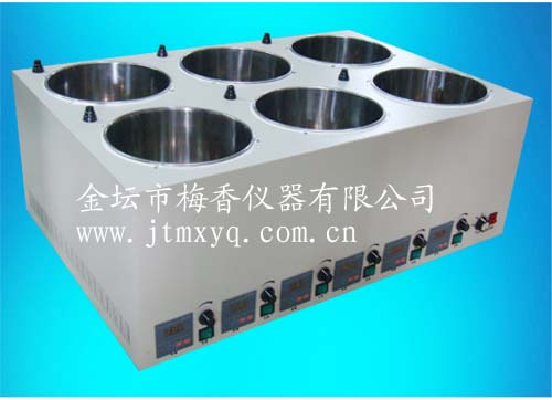

Significant number of independent control collector-type magnetic stirring water bath
Brief introduction
This instrument is widely used among major colleges, environmental protection, scientific research, health, disease prevention, petroleum, metallurgy, chemical, medical and other units, according to the requirements of customers design Erlian, four even, even more so on Six heatable stirred thermostatic control. So that the majority of users to simultaneously receive a plurality of samples and the corresponding effect data. The instrument performance, low noise, stirring effect is remarkable, is the ideal laboratory testing personnel essential tool.
First, the digital independent control collector-type magnetic stirring water bath technical parameters
Power supply voltage: 220V ± 10% 50HZ
Motor power: 6X25W
Heating power: 6X800W
Temperature range: room temperature -99.9 ℃
Temperature accuracy: ± 0.5 ℃
Motor speed: up to 2600 rev / min
Second, the number of significant independent control collector-type magnetic stirring water bath use
1, electrical safety: The product use 220V AC power outlet should be three-hole safety socket must be properly grounded, must not be ground to a gas pipe.
2, power should be preceded by injecting water into the pot to the separator over the course of the heating pipe must not be out of the water, otherwise it will burn even burst heating pipes or solder melt leakage, electric shock, etc.
3, the middle of the desired stirring beaker, added to the solution to stir the solution in a beaker, and then plug in the instrument to plug the power cord, and then turn on the power line from the timer knob aligned "ON" normally open position, pay attention to the timer dial position, turn the power switch governor, began to work, speed is gradually adjusted to the low-speed, high gear does not allow direct start, so as not to stir out of sync, causing jitter. Work should not cut off the power, to ensure safety, connect the ground when in use. The instrument should be kept clean and dry, non-solution into the machine, so as not to damage the parts, to prevent severe vibration.
Third, the number of significant independent control of collector-type magnetic stirring water bath set temperature: Press the SET button to set or check the temperature set point. Press the SET button digital control character starts flashing, that instrument into setting mode, press the △ button to increase the set value, press ▽ key to reduce the set value, press △ key or ▽ key data is rapidly changing, press again sET key instrument to return to normal working condition temperature setting is completed.
Four independent digital control collector-type magnetic stirring water bath Considerations
1, stirring find a stir when beating or without stirring, turn off the power to check whether the flat bottom of the beaker, the location is positive. Please also measuring about now with voltage between 220V ± 10V, otherwise it will appear above.
2, the heating time is generally not too long, intermittent use of longer life.
3, medium-speed operation can work 8 hours of continuous high-speed operation can work for 4 hours.
- Size: 400*600*170
- Place of Origin: jintan
- Brand Name: MEIXIANG
- Model Number: CL-20C
- Weight: 5.000 kg
supply voltage | 220V±10% 50HZ |
motor power | 6X25W |
heating power | 6X800W |
temperature control range | room temperature -99.9℃ |
control accuracy | ±0.5℃ |
motor speed | Max 2600rpm/min |
