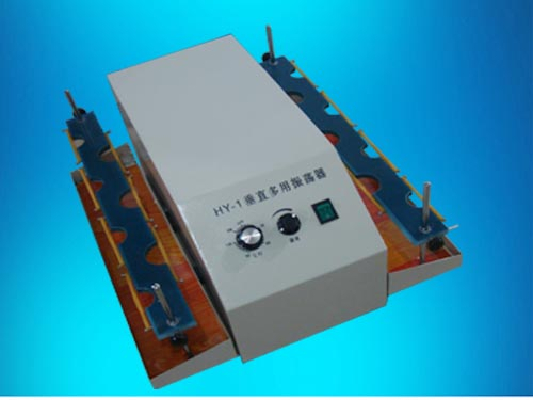

HY-1 Vertical multi- speed oscillator
Vertical multi-oscillator is a way to sample a variety of chemical and biological equipment oscillation stir under the same conditions , plants , micro-organisms, biological products, genetics, viruses , medicine, environmental protection, scientific research, education and manufacturing sectors essential laboratory equipment. Instrument is equipped with special fixtures , can setup multiple test bottles , a mechanical timer , variable speed, smooth running, easy to operate security.
Use of indicators :
Speed range starting ~ 360r / min
Amplitude 2Omm
Maximum load 1OKg
Timer Range 0 ~ 120min ( or normally open )
Power source AC 220V 50Hz
Instructions:
   Plug the power cord is inserted into the corresponding jack oscillator , then three-pin plug into a power outlet, the time , the power , open the oscillation switch ; vibration speed can be adjusted according to your requirements the speed knob.
Precautions:
1 , the instrument case should be properly grounded to avoid accidents .
2 , long-term when not in use , should cut off the power , dry and ventilated place .
